Setup & Install Guide
The Ultimate Setup Guide
How to setup your Dash Cam
STEP 1 - GIVE IT SOME JUICE
Charge the Dash Cam via the supplied USB for up to two hours before first use.
STEP 2 - DOWNLOAD THE APP

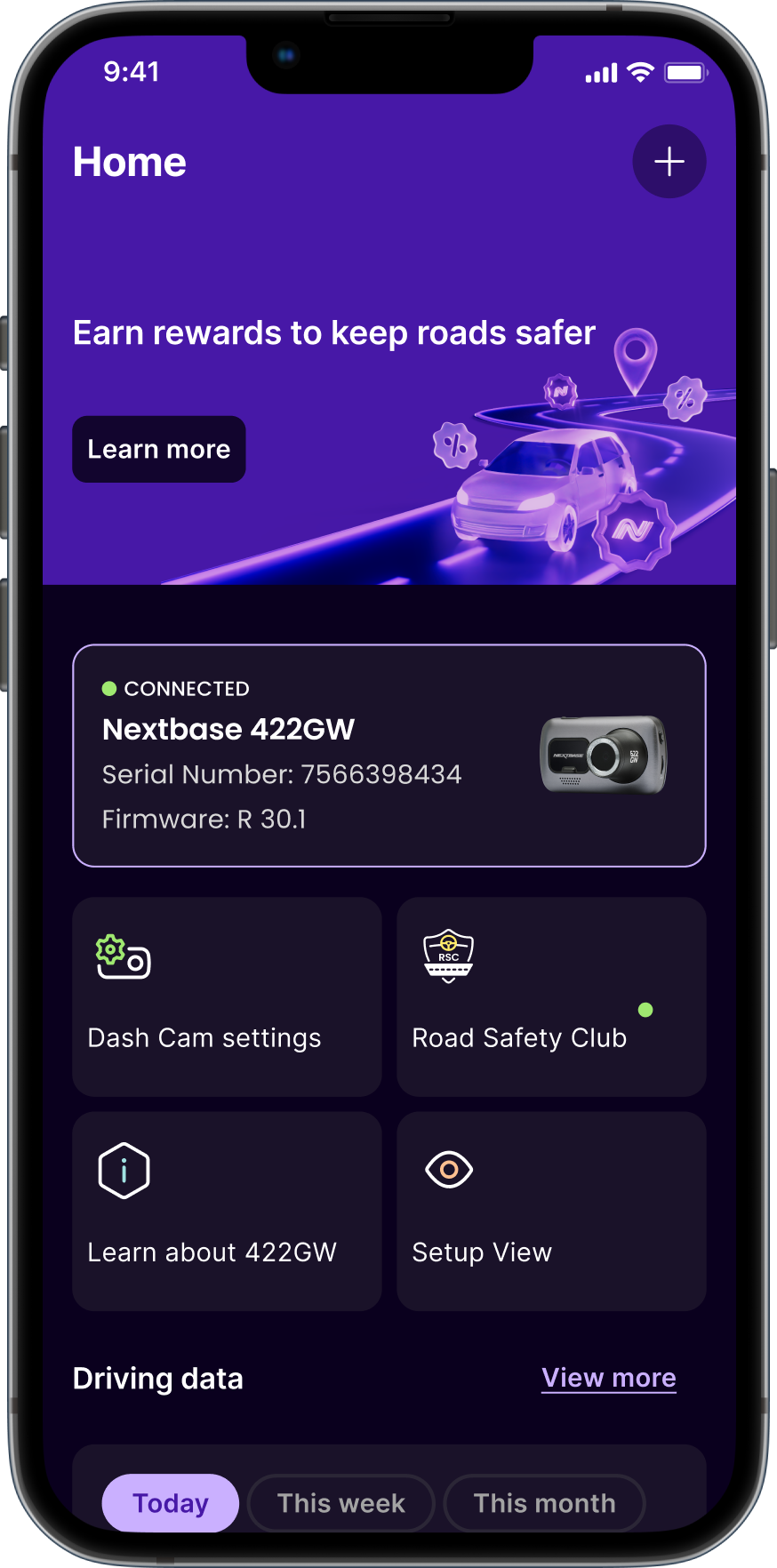

MyNextbase Connect
View, edit and share footage on your mobile or desktop app, as well as update your dash cams firmware. Required for use with Emergency SOS and Alexa Voice Control.
Requires Android 5.1 and up or IOS 12.1 or later
STEP 3
Insert microSD card-
Use only Nextbase U3 SD card. Standard SD cards are NOT RECOMMENDED and may adversely affect performance.
STEP 4
Position mount & cables -
Insert Power Cord into mount. Computer USB input located on Dash Cam for convenience. For more help see video below.
STEP 5
Route cable and connect power -
Guide the cable around your windshield and make sure to pull the wire through to the base of the Click&Go mount to plug in. Position the Dash Cam correctly.
STEP 6
Follow on
screen instructions
STEP 7
Adjust polarising filter -
For any Dashcam Cam fitted with a polarising filter (522GW & 622GW) this can be adjusted using the rotating bezel to dramatically reduce windshield glare and help produce the perfect image.
REAR MODULES
A
REAR WINDOW CAMERA
Cable connection to your rear windshield. Gives comprehensive protection against tailgaters and rear-end impacts
B
REAR VIEW CAMERA
Records the rear view of your journey through the car using a 50m zoom lens. Guards against tailgaters and rear-end impacts.
C
CABIN VIEW CAMERA
Records events inside your vehicle using a wide-angle lens. Perfect for families, rideshare drivers and taxi drivers.
Nextbase Click&Go PRO Mount - How To Install New 3M Pad
WORKS BEST WITH
NEXTBASE SD CARDS
Nextbase Industrial Grade U3 microSD Cards are designed to ensure uninterrupted recording with a high number of write cycles. Non compatible SD Cards will corrupt, causing the Dash Cam to freeze, stop recording, or malfunction.
Recording time
FRONT ONLY
1080p
280 mins
1080p
570 mins
1080p
1130 mins
1080p
2260 mins
FRONT & REAR
1080p/720p
200 mins
1080p/720p
395 mins
1080p/720p
790 mins
1080p/720p
1580 mins
FRONT ONLY
1440p
140 mins
1440p
270 mins
1440p
545 mins
1440p
1080 mins
FRONT & REAR
1440p/720p
115 mins
1440p/720p
230 mins
1440p/720p
460 mins
1440p/720p
920 mins
FRONT ONLY
4K
80 mins
4K
165 mins
4K
330 mins
4K
720 mins
FRONT & REAR
4K/1080p
60 mins
4K/1080p
120 mins
4K/1080p
250 mins
4K/1080p
540 mins
FRONT & REAR
4K/
1080p
60 mins
4K/
1080p
120 mins
4K/
1080p
250 mins
4K/
1080p
540 mins
How to Hardwire a Nextbase Dash Cam
